Parkside | San Mateo
Addition & Remodel

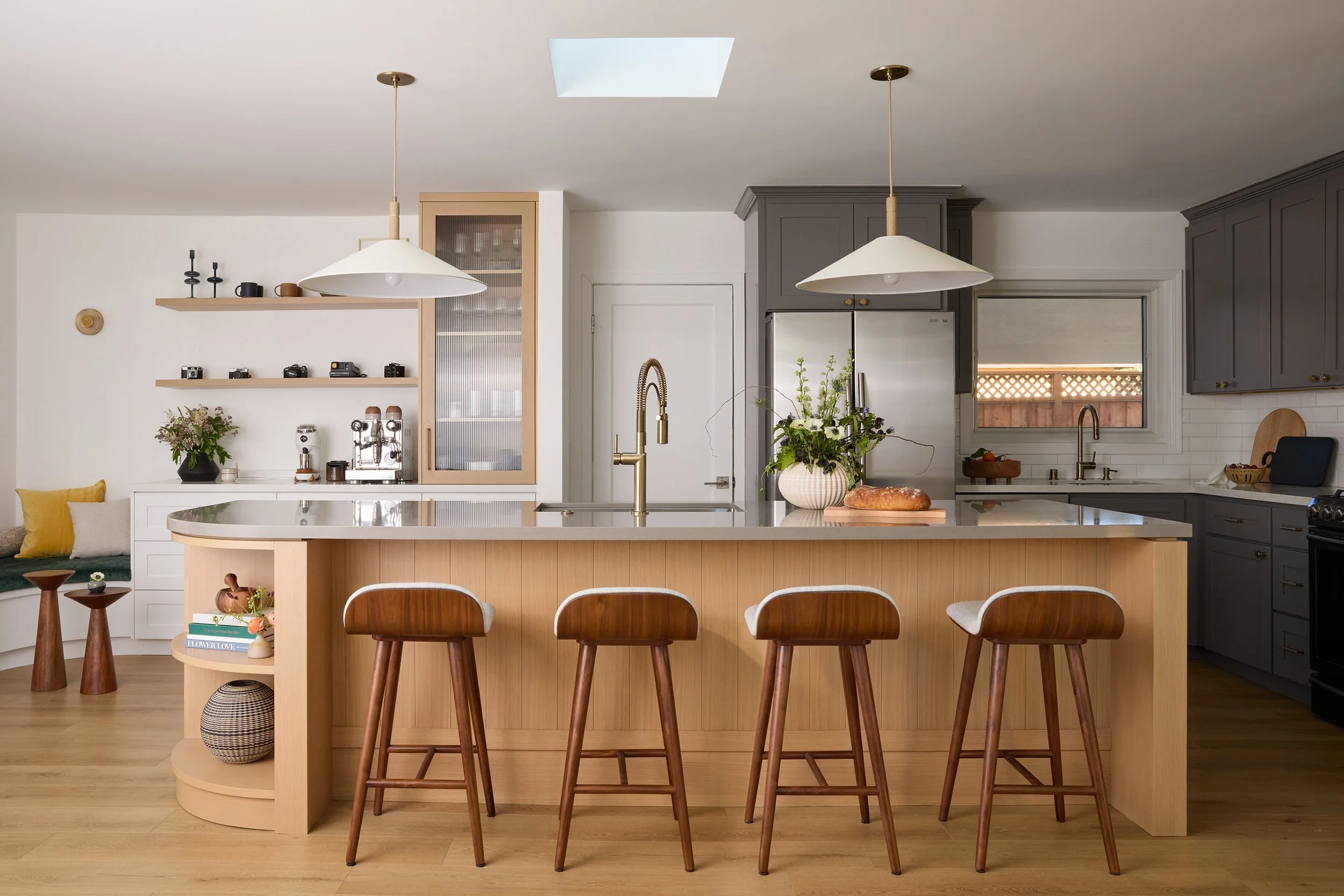

Our project initially began as a simple horizontal addition to accommodate a new Primary Suite. However, through candid conversations with the homeowners, we gained a deeper understanding of their needs, which ultimately led to the creation of an open, social, and entertainment-focused Great Room floor plan. This included expanding the previously renovated, but undersized Kitchen with the addition of a new island and a walk-in pantry.
Looking ahead, we also incorporated a compact attached 435 square foot Studio ADU, ensuring the home is both functional and adaptable for the future.
With thoughtful planning, this single-family home is now prepared for whatever the future may bring.

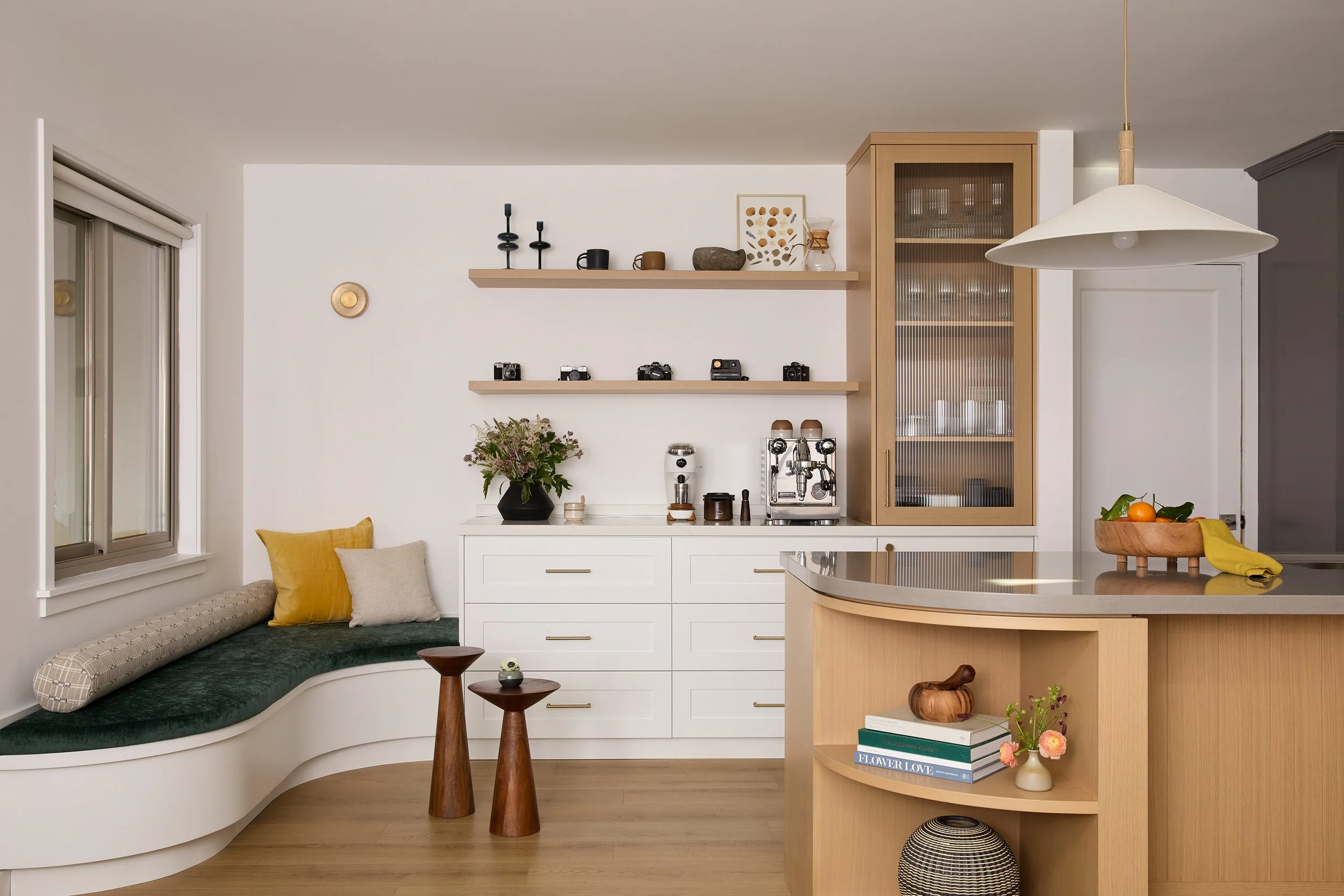

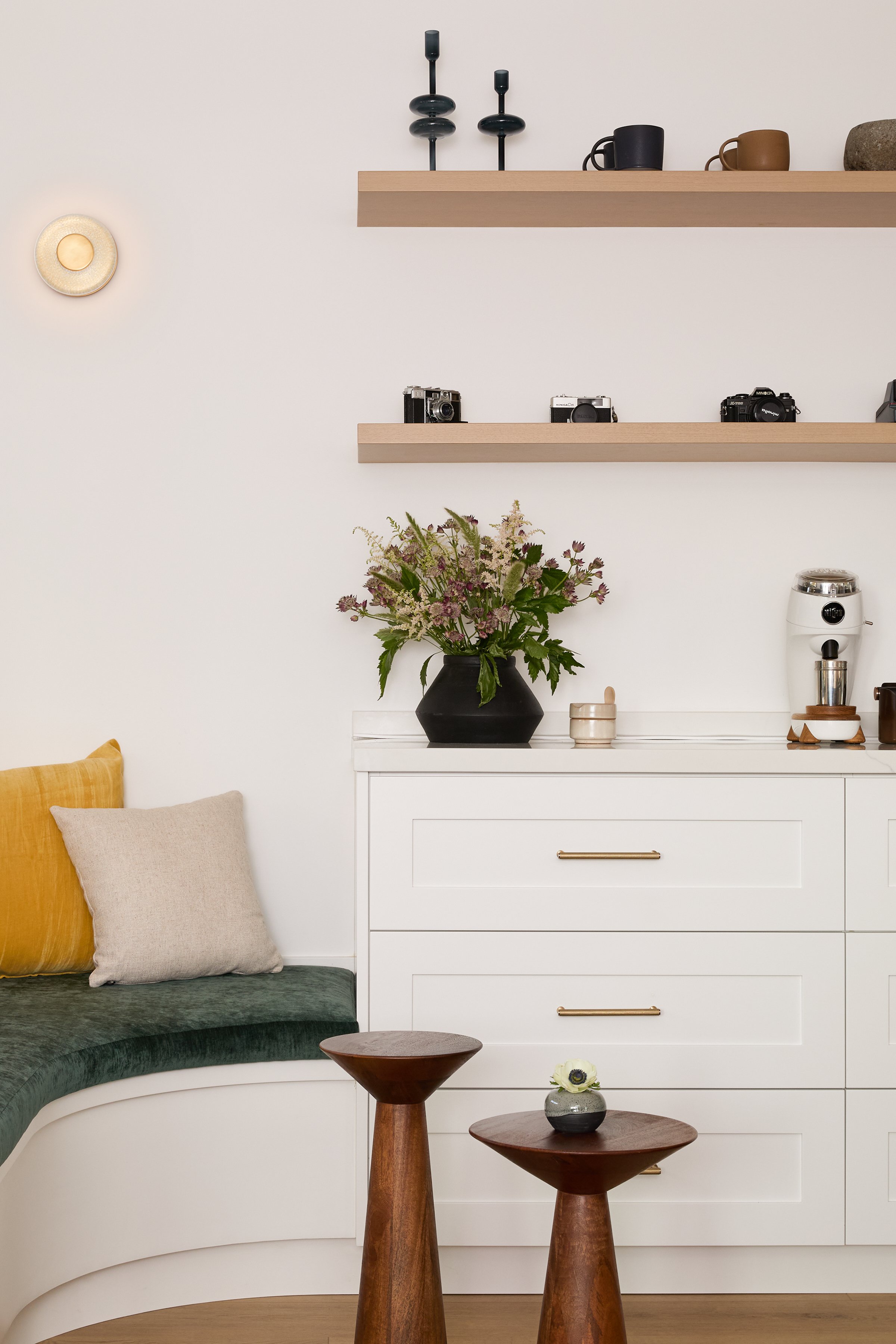

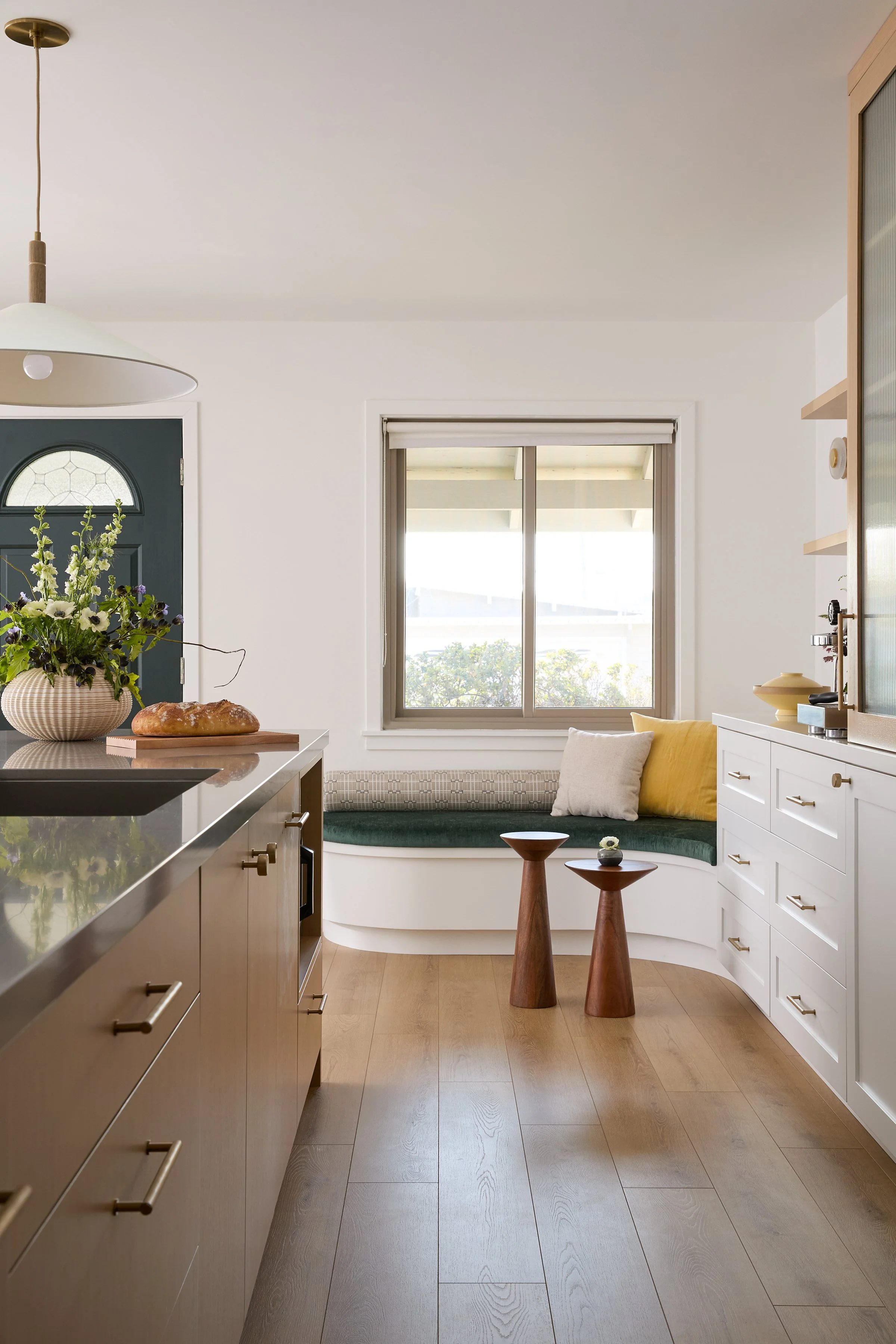

| Coffee Bar |
Custom curved velvet banquette seat cushion paired with a decorative patterned bolster pillow.

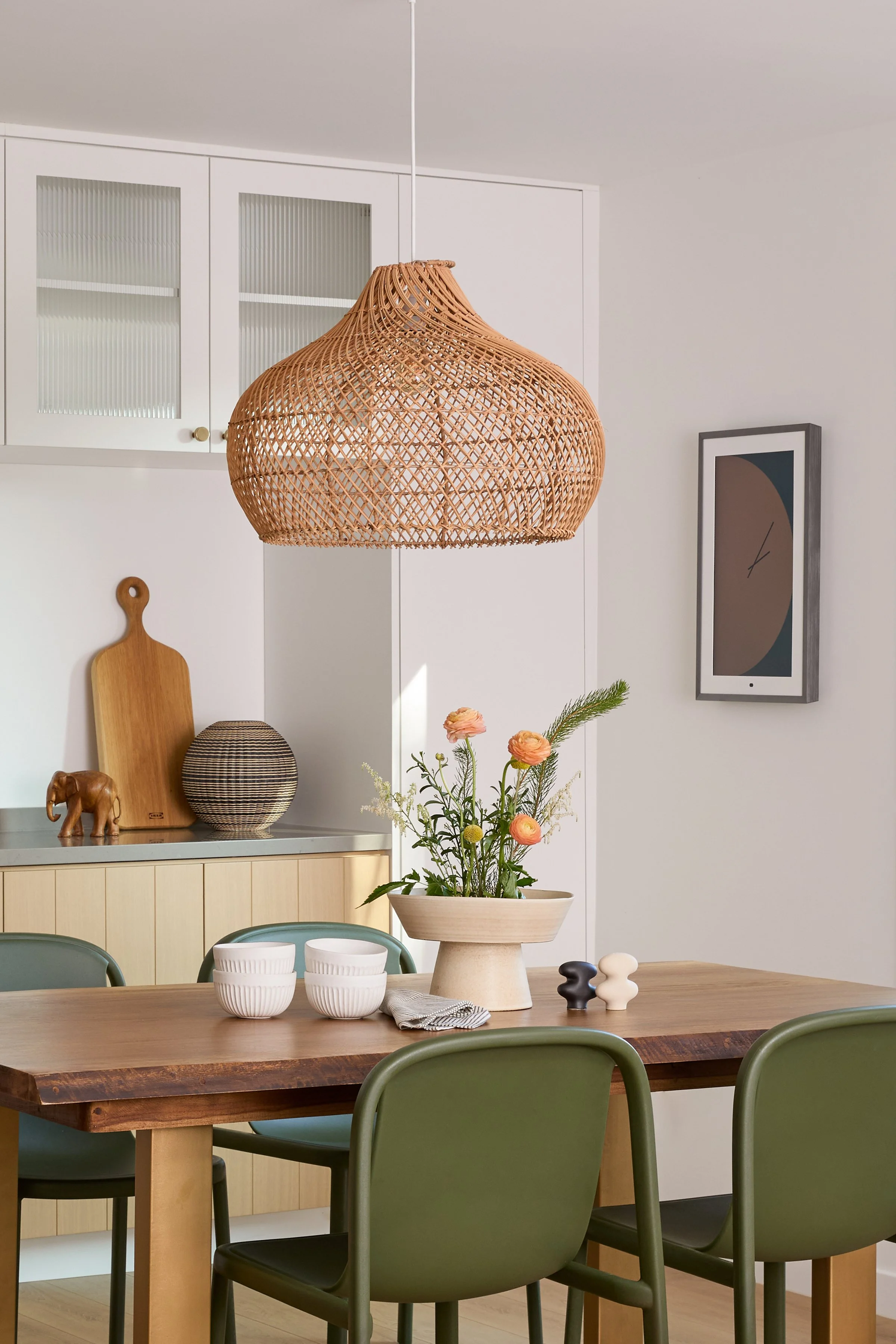

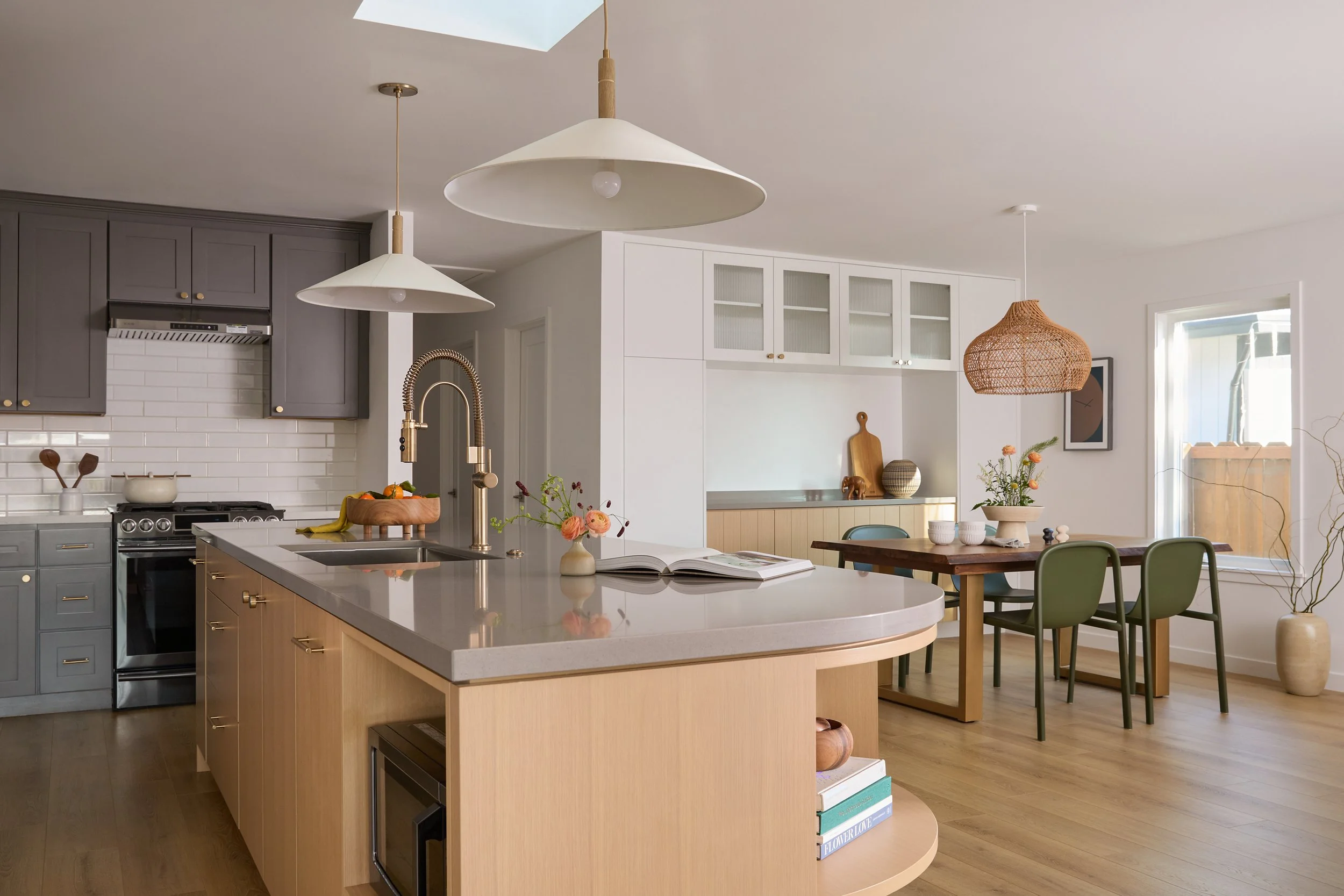

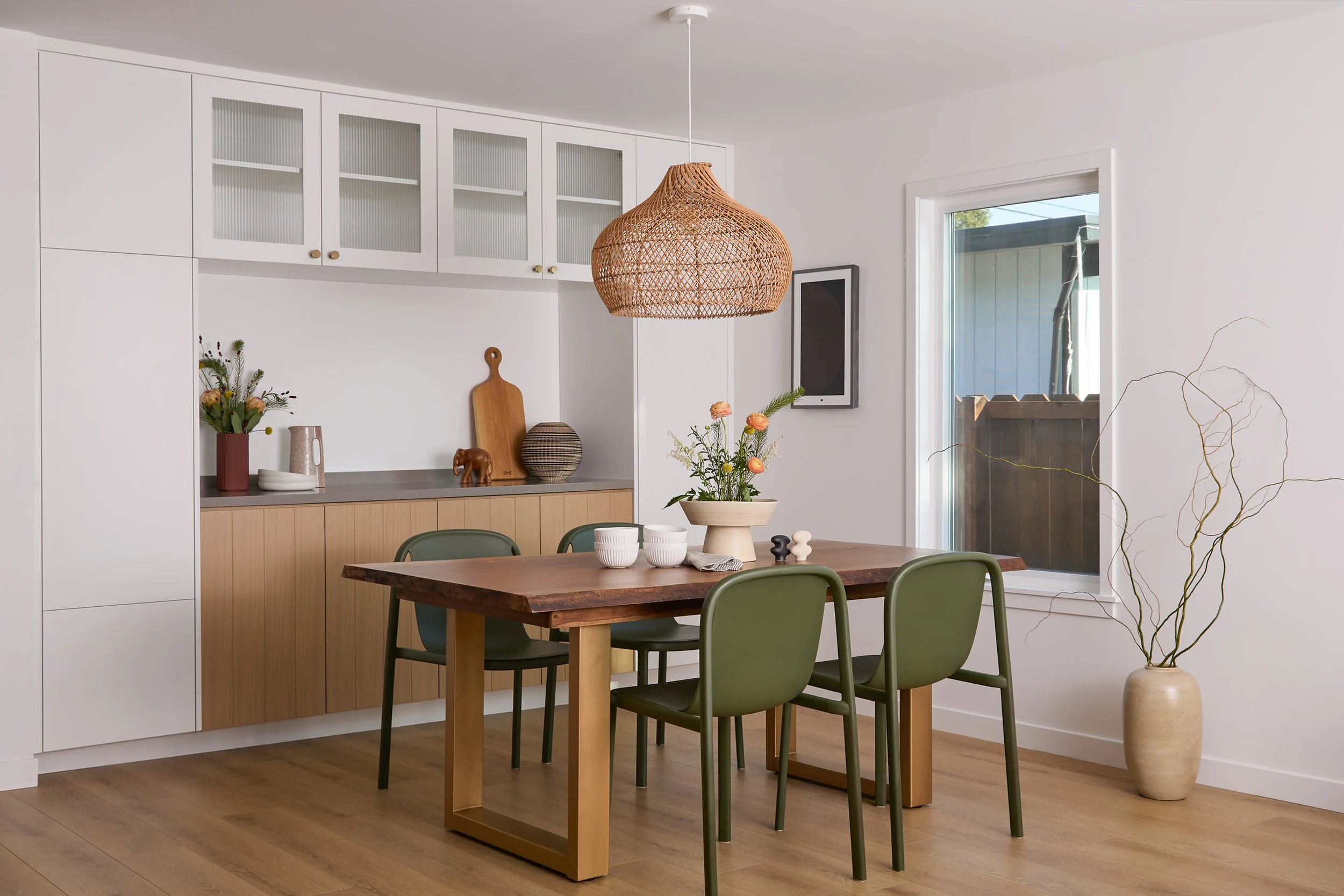

| Open Dining |

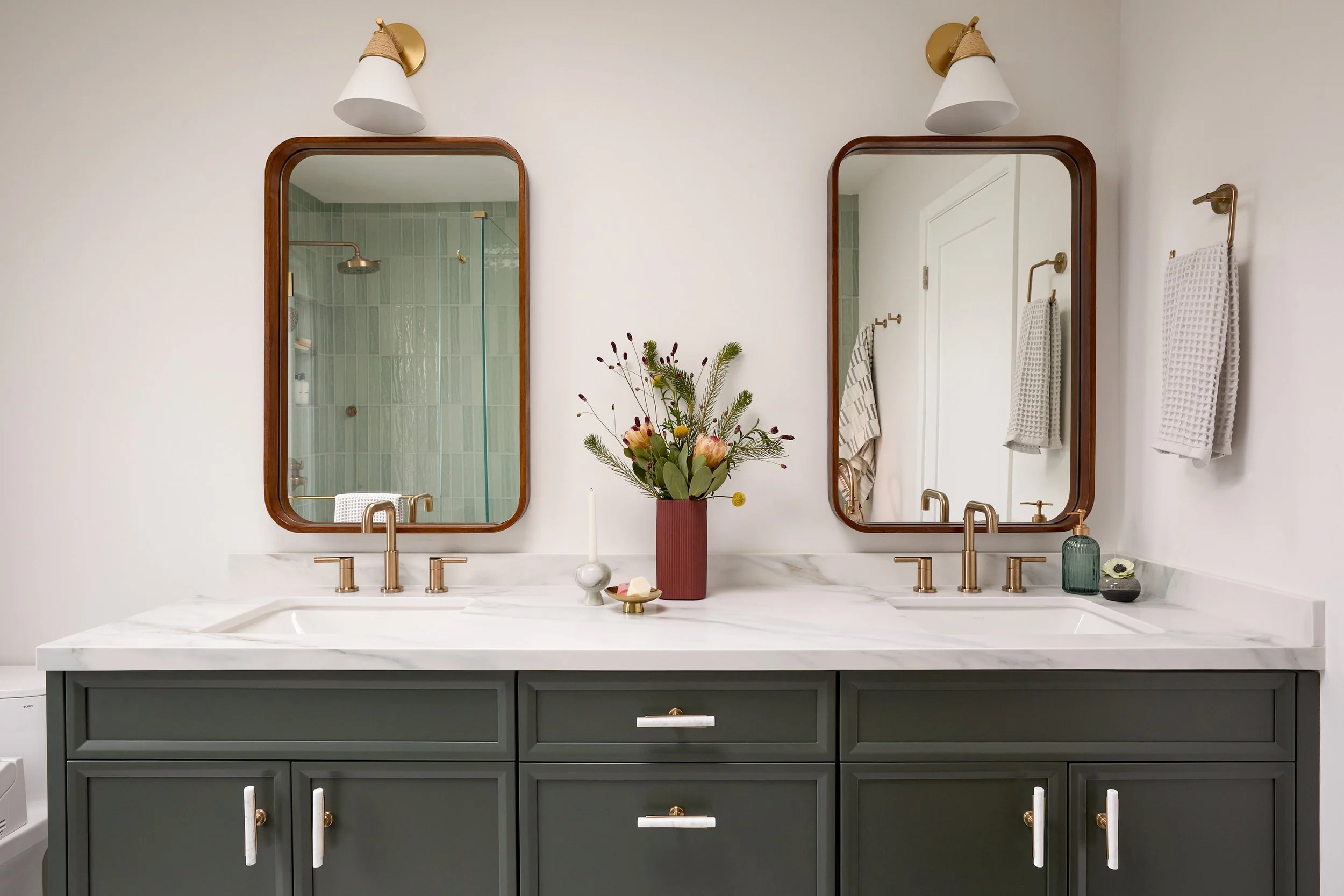

| Primary Bathroom |

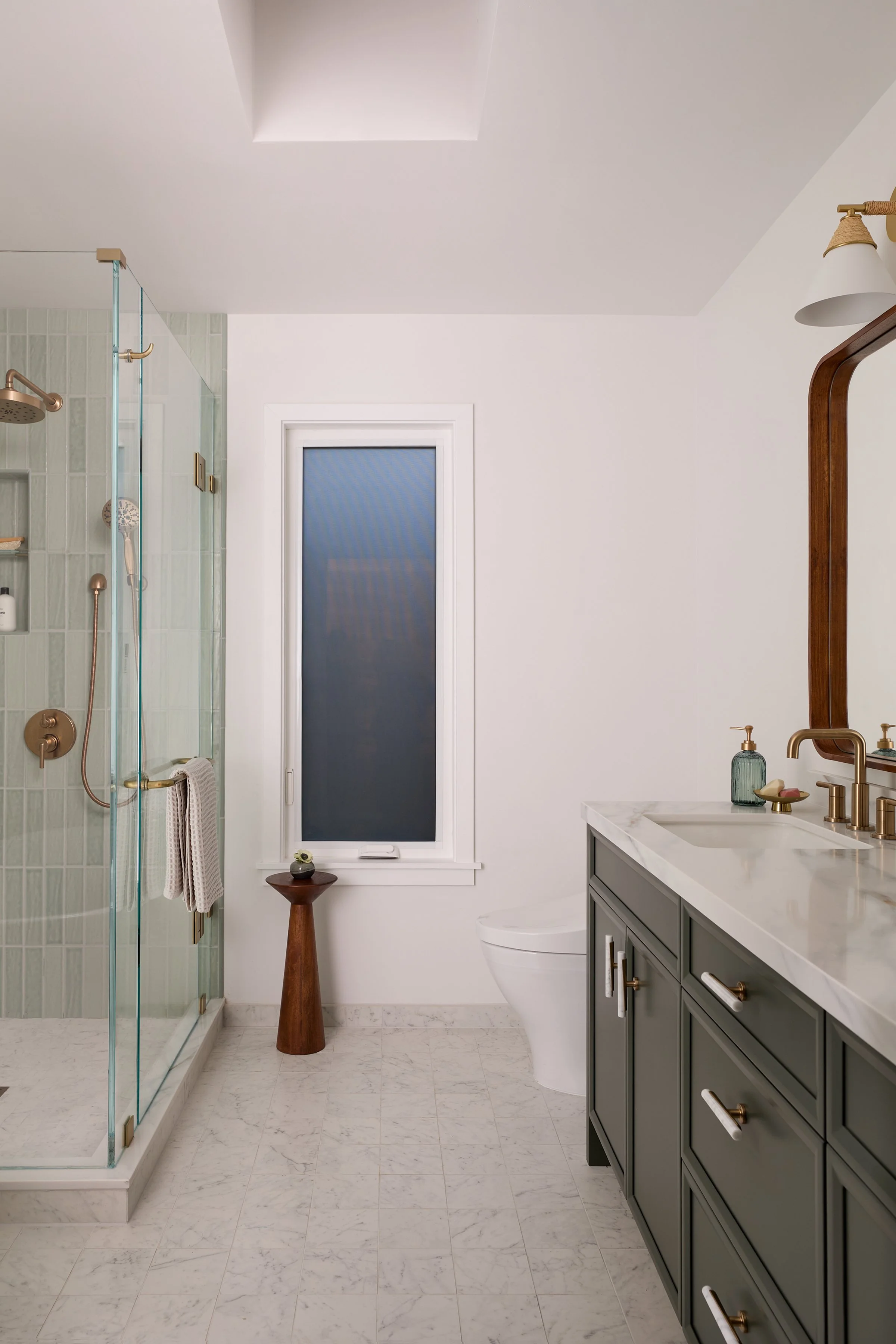

One of our signature design moves is to align the window & skylight with the entry.
Designed for both leisurely soaks & quick morning showers...

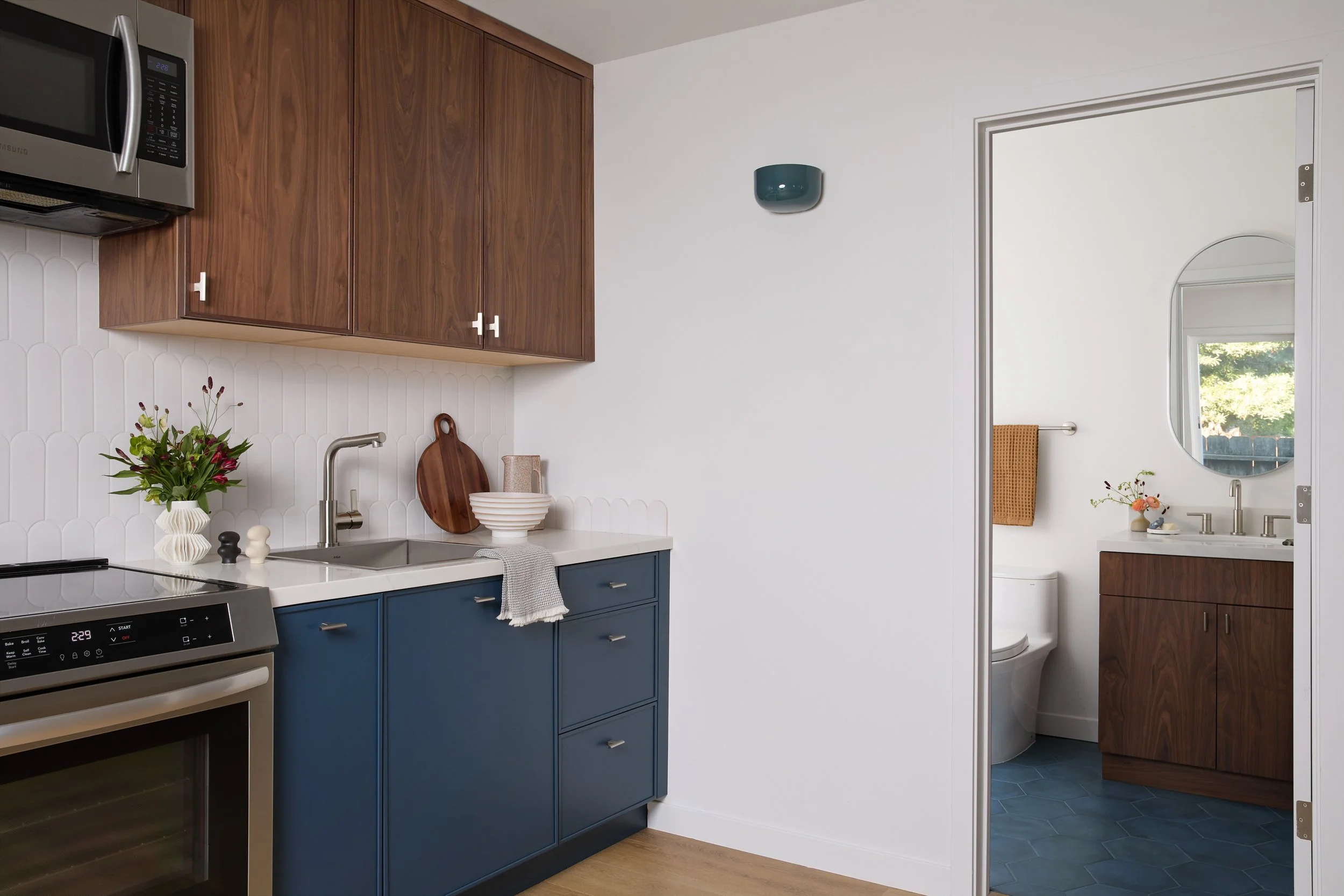

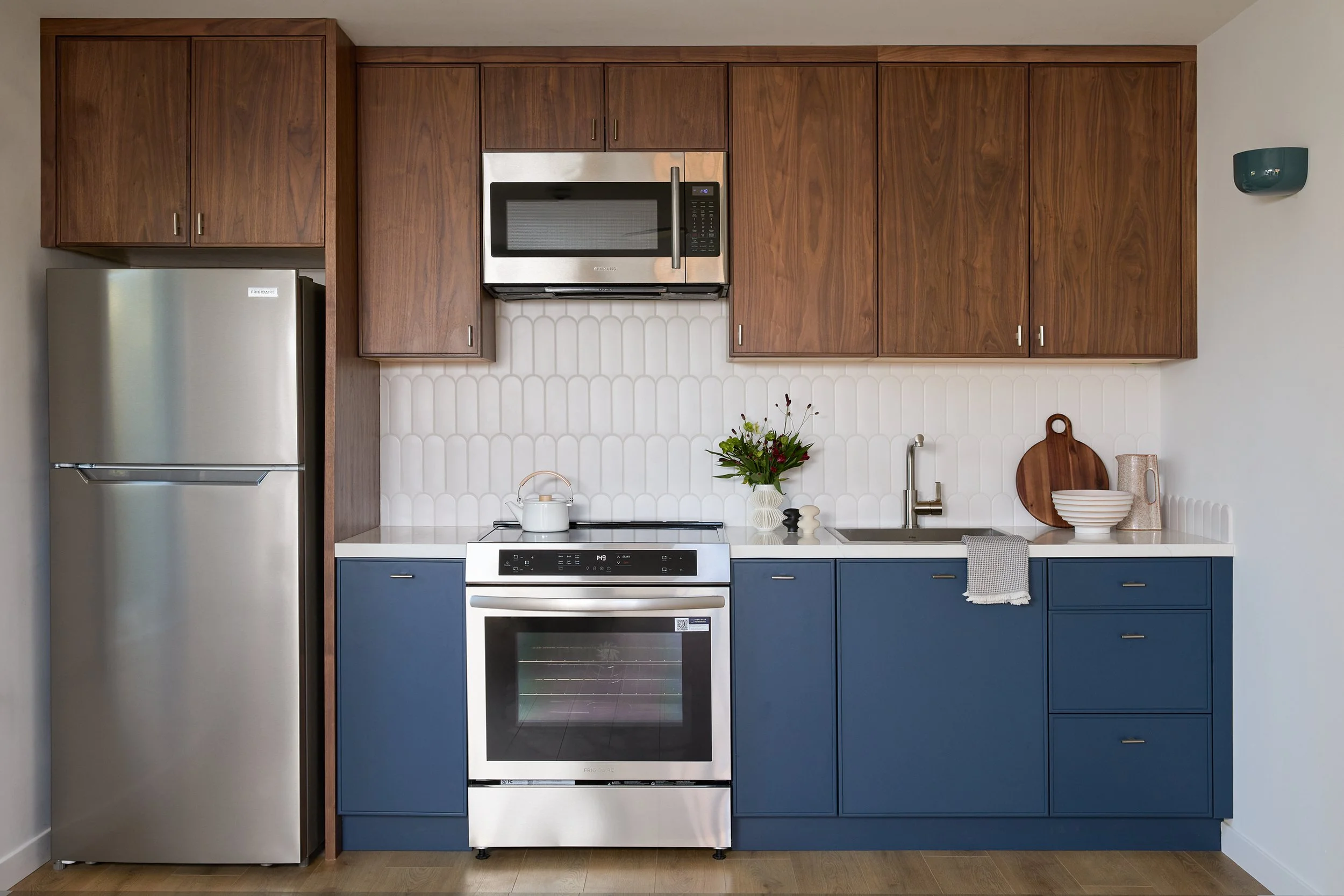

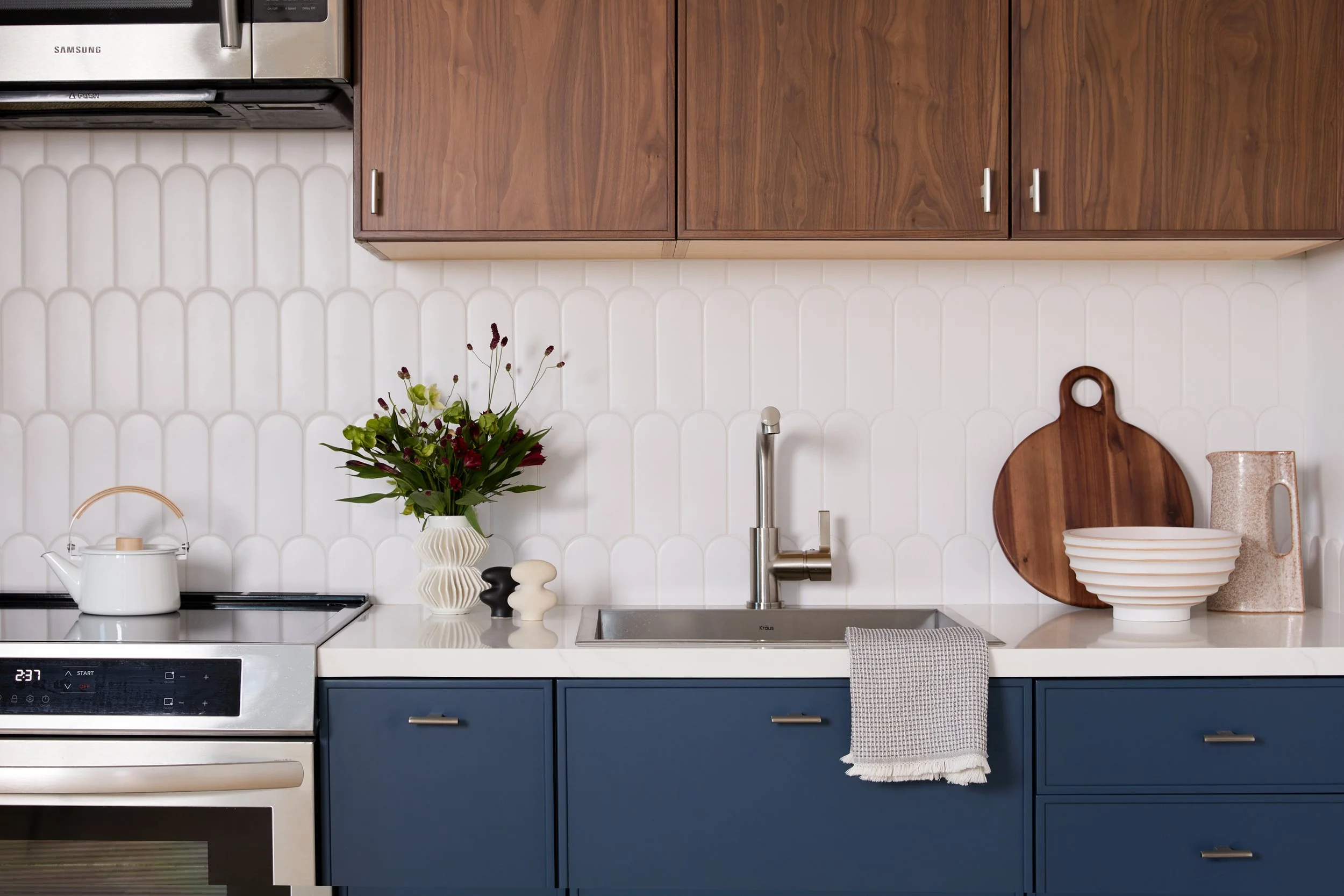

| ADU Kitchen |

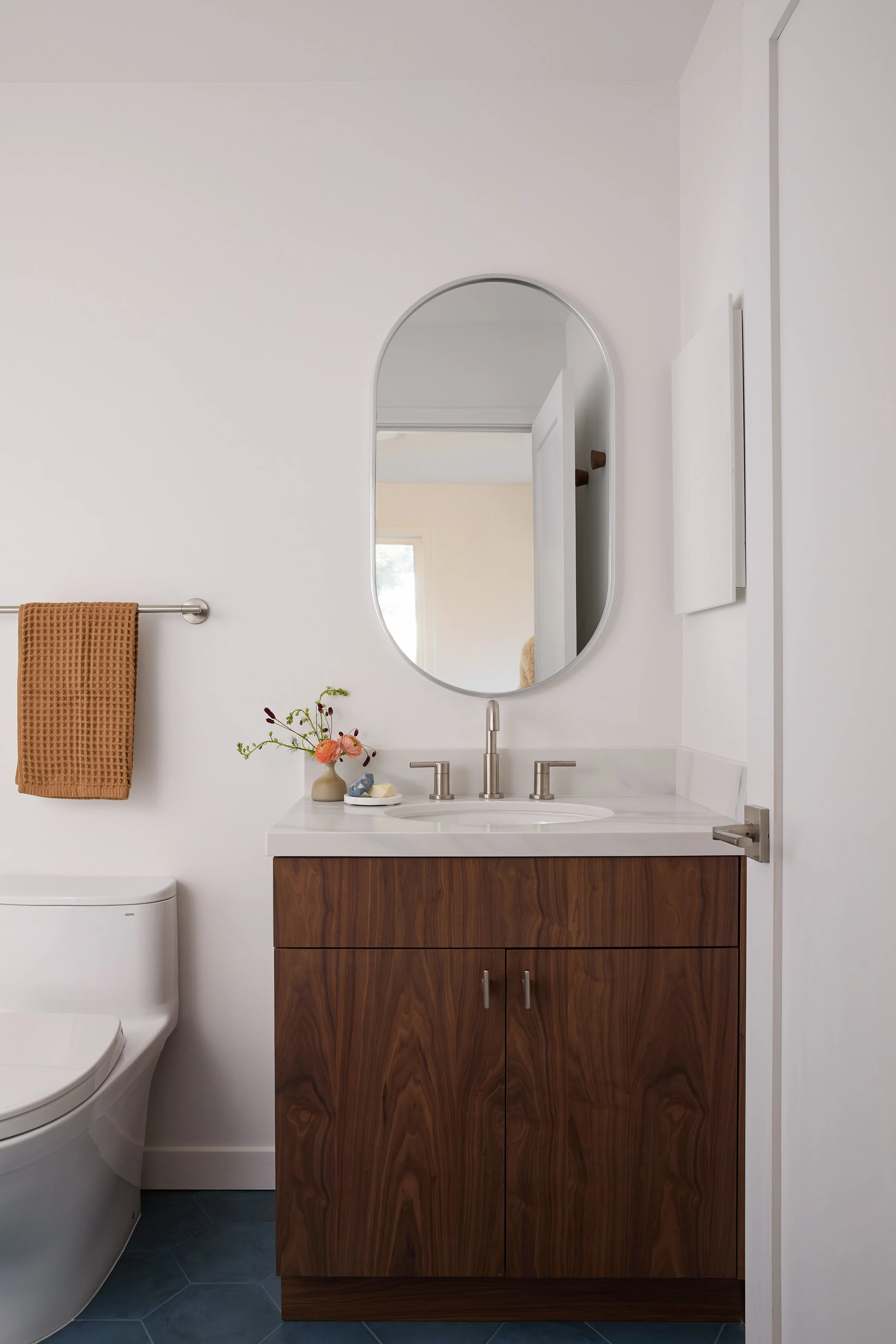

| ADU Bathroom |

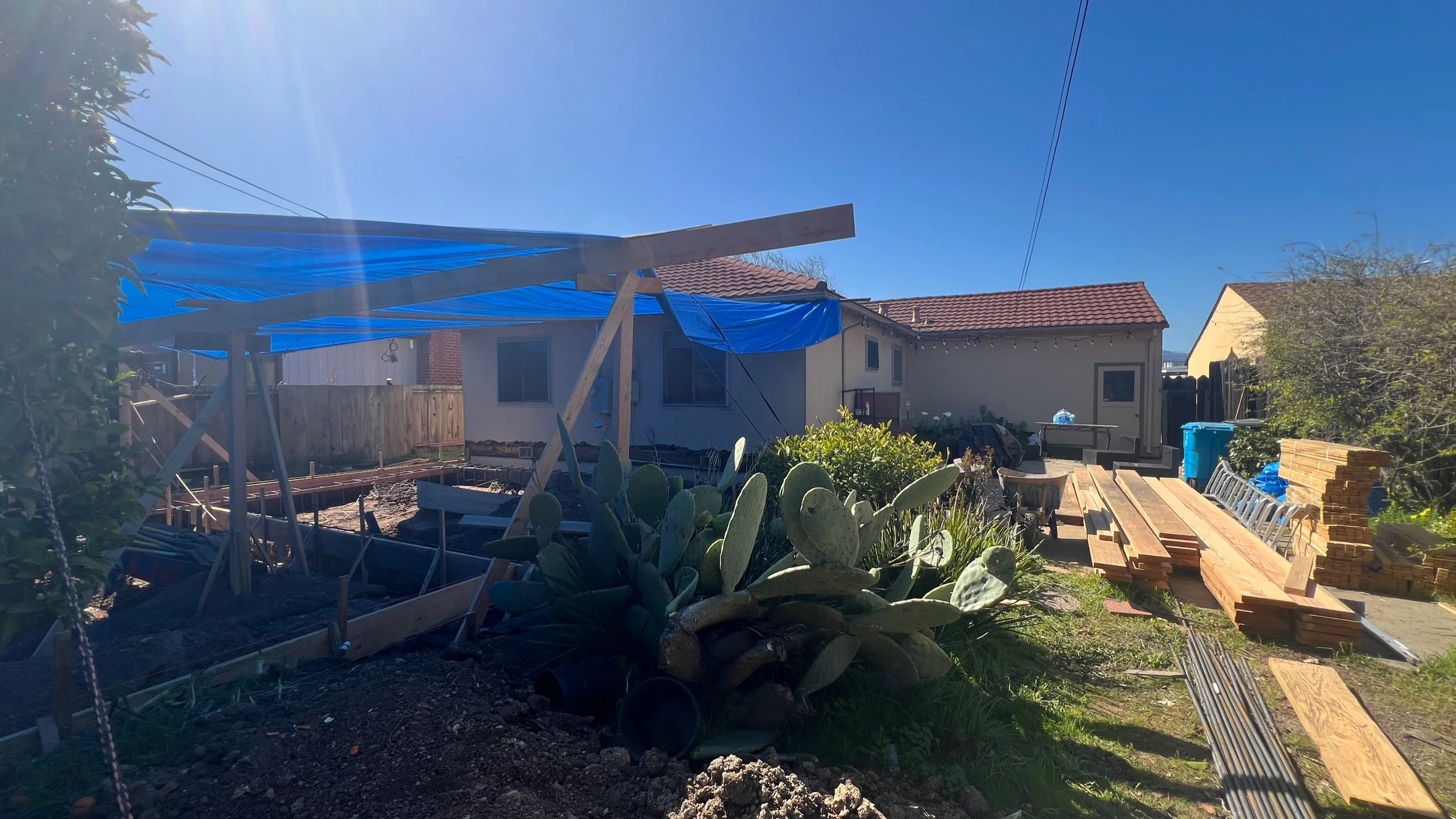

| Breaking Ground |
To ensure that there are no future property line disputes our surveyor “staked out” exactly where our addition needs to be located.

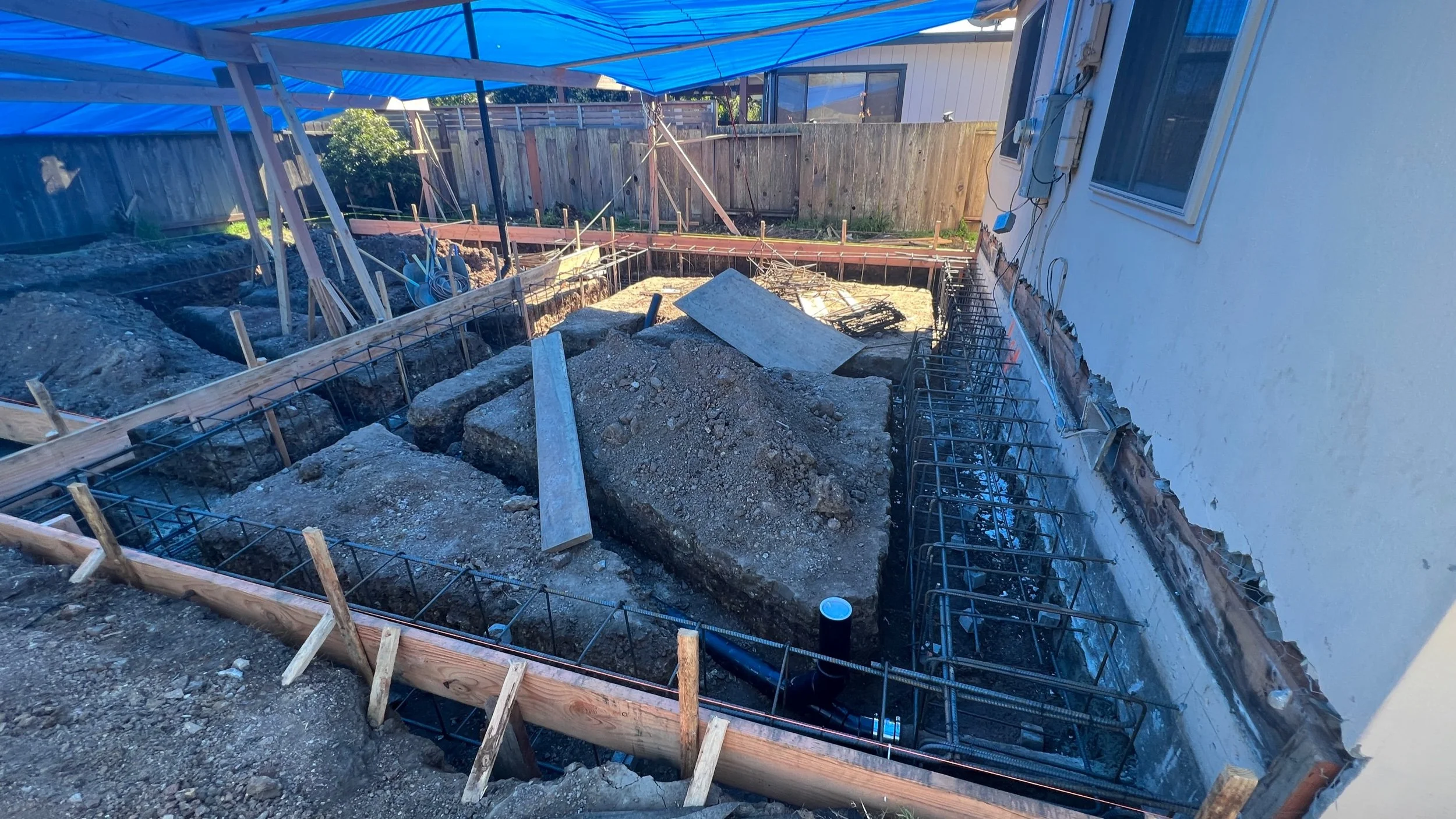

The ground is being excavated to match the required foundation dimensions. A rebar cage is then dropped in & concrete will be poured. Underground plumbing also needs to be planned prior to the concrete pour. Note how the rebar also ties into the existing foundation to unify existing & new.
The concrete foundation has cured & we are ready to start our wood framing which is a big project milestone.
The next domino falls as floor framing & insulation are in!
With the plywood subfloor down, there is no where to go but 🆙

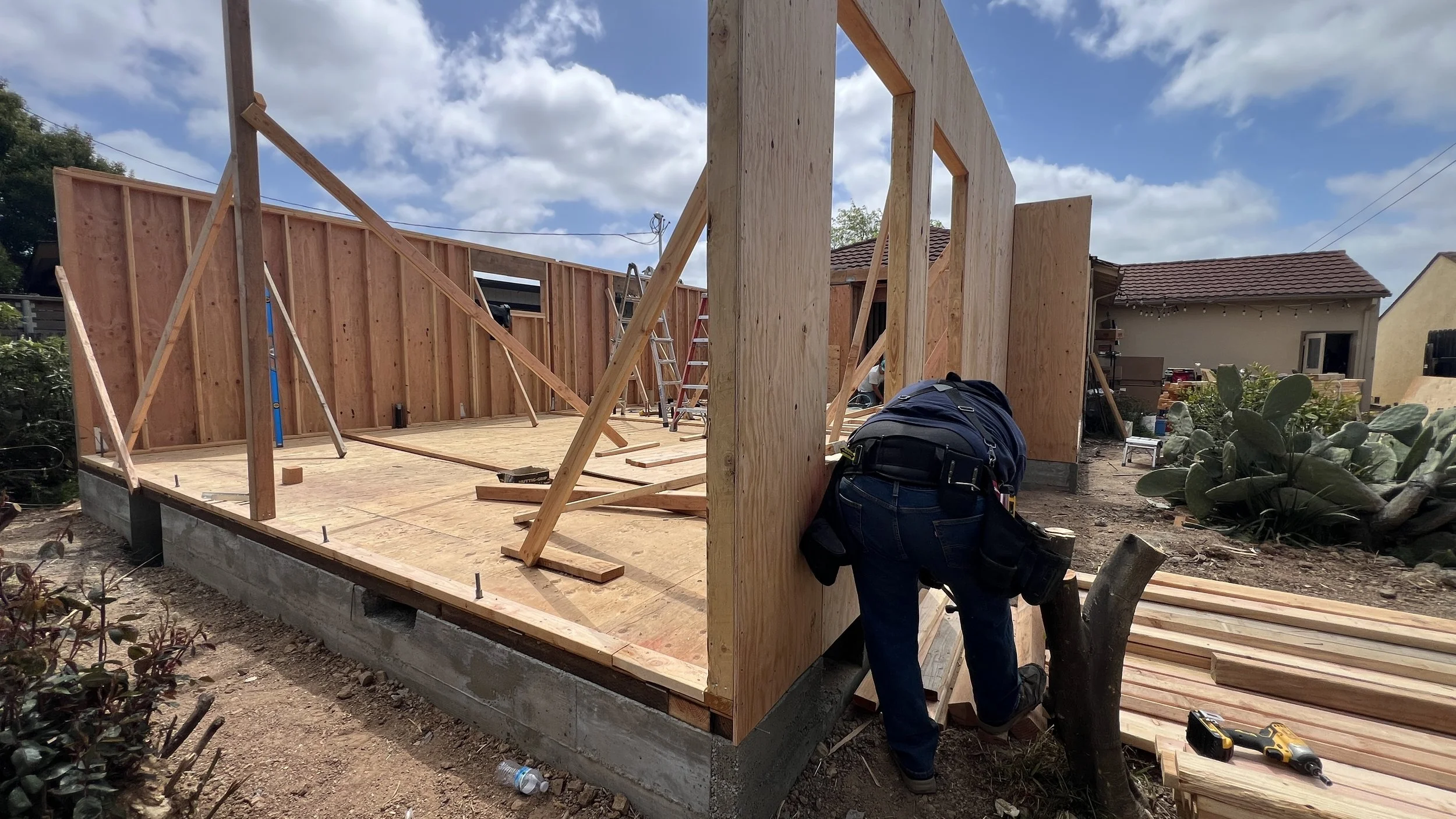

One wall to go before all our exterior walls are 🆙

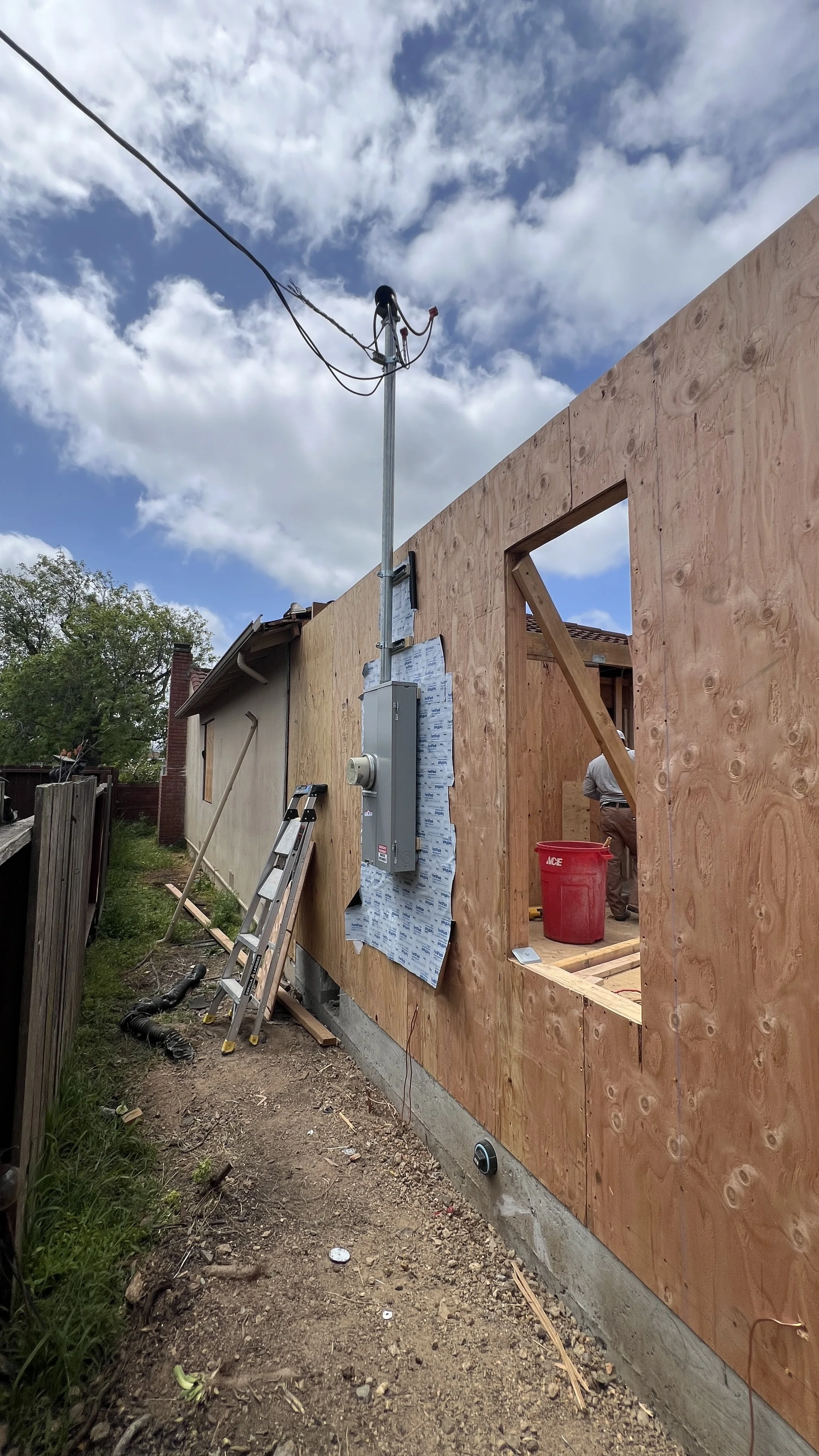

Strategically placing our new upgraded electrical meter where it is within the proximity of the previous meter. In doing so, we can avoid the need to bring in PG&E who are notorious for being challenging to deal with - if you can even get in touch with them at all…
All exterior walls are up with the recessed face being our attached ADU entry wall.
First protective house wrap layer is up.

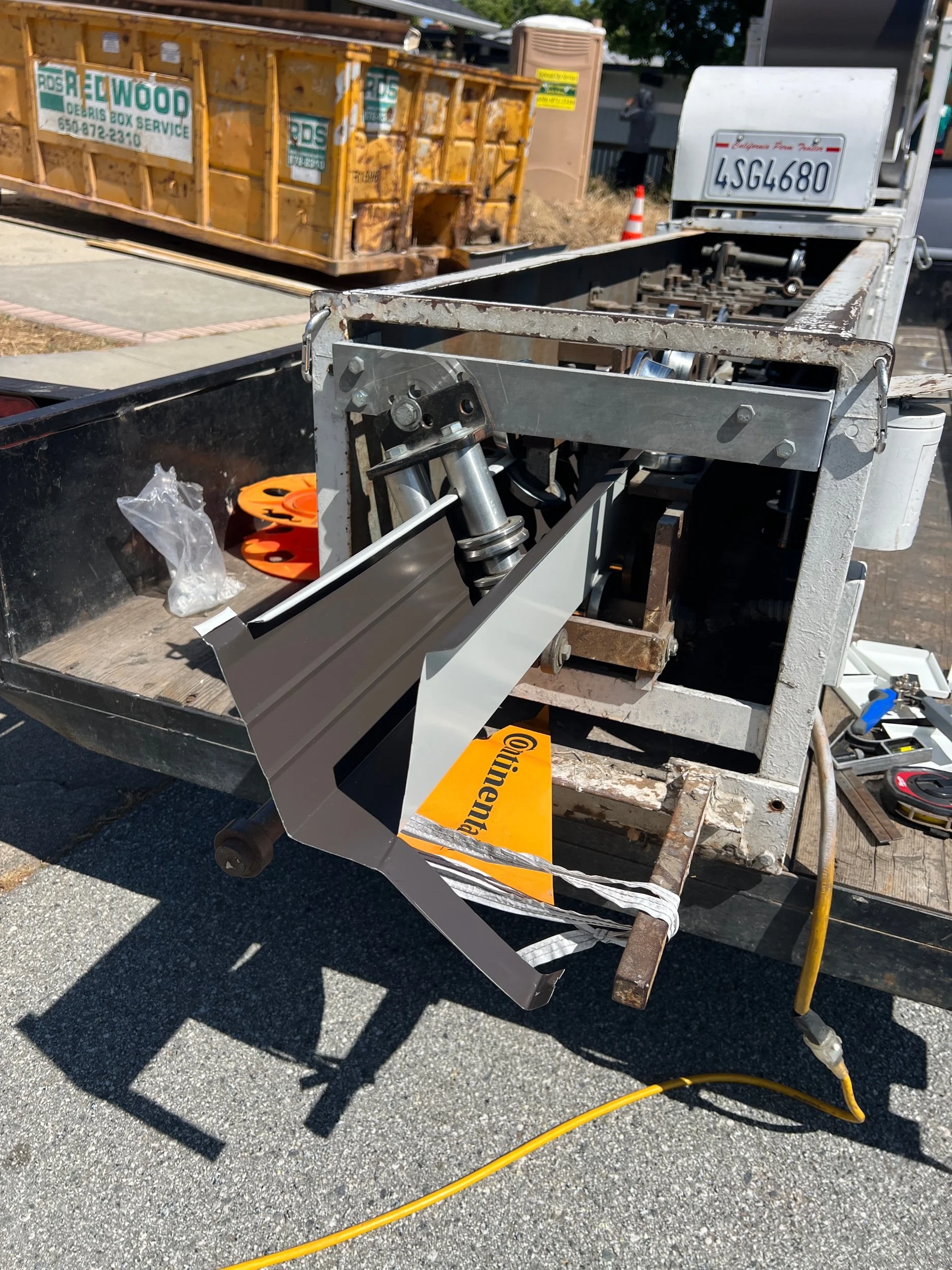

The gutter machine has arrived to fabricate our site formed continuous gutters. Our south gutter will be a seamless 60-foot run. Continuous gutters have the advantage of reducing leakage, allows for better water flow, is aesthetically superior, and lowers long-term maintenance costs.
Metal lath & black weather-resistive barrier layer behind are up. We are all ready for stucco & our exterior shade structure beyond has also been framed.
Mocking up our new exterior paint colors. Our concept was for a timeless & elegant home with a hint of modern coastal vibe.
Checking in on the painting progress at the Rear Yard & ADU Entry.
| Existing Rear Yard | …while ADUs can be 4-feet off the property line by code, there is a 5-foot public utility easement at our rear property line. Therefore, our new attached ADU will sit exactly 5-feet off the rear property line to maximize our built area.
Checking in on the painting progress at the front of the house.
A key to modernizing the house was replacing the metal roof with new asphalt shingles.
| Existing Front Exterior |
| Entry Great Room Visual |
| Great Room Visual |
| Coffee Bar Visual |
The new open Great Room (Kitchen/Living/Dining/Coffee Bar) is well underway with structural work complete. The island “pony wall” framing & plumbing are also in place.
In order to accommodate the open plan, there are three new beams which will be concealed above the ceiling:
Beam #1: 7” wide by 14” deep by 24-foot long main beam;
Beam #2: To the left of Beam #1 will be a 4” wide by 10” deep beam to the exterior wall; and
Beam #3: To the right of Beam #1 will be a 3-1/2” wide by 9-1/4” deep beam which will sit on a new post
All plumbing in your home must have vents to remove sewer gasses and regulate air pressure in pipes. These vents usually extend within walls & up and out of the roof.
Since there are no full height walls at the island, island sinks will typically use loop venting where the vent will run under the floor & then connect to the typical in-wall vent.
Our Great Room is finally coming to life — the drywall is up, and it's all starting to feel real!
Checking in on our curved custom Coffee Bar bench which will be topped with a tailored cushion.
Just part of our big cabinet delivery haul - time to inspect for any defects (and file for claims, if necessary)
The cabinets are all laid out & the best is yet to come!
Ready for counters!!
What’s old can be made new again… We selected a rich forest green to give the existing front door new life on the exterior while simultaneously working with our new interior finish palette!💫
One of our favorite construction milestones - Counter Day!
Counters are down & we are inching our way to the finish line at our Great Room.
Every cup of coffee deserves a corner this comfortable with our custom seat cushion & bolster pillow.
| Existing Dining | … (with the existing Kitchen to the right) will be all opened up to create a large social area with the expanded adjacent spaces
| Primary Bath Visual - Entry View |
One of our signature design moves is to align the window & skylight with the entry.

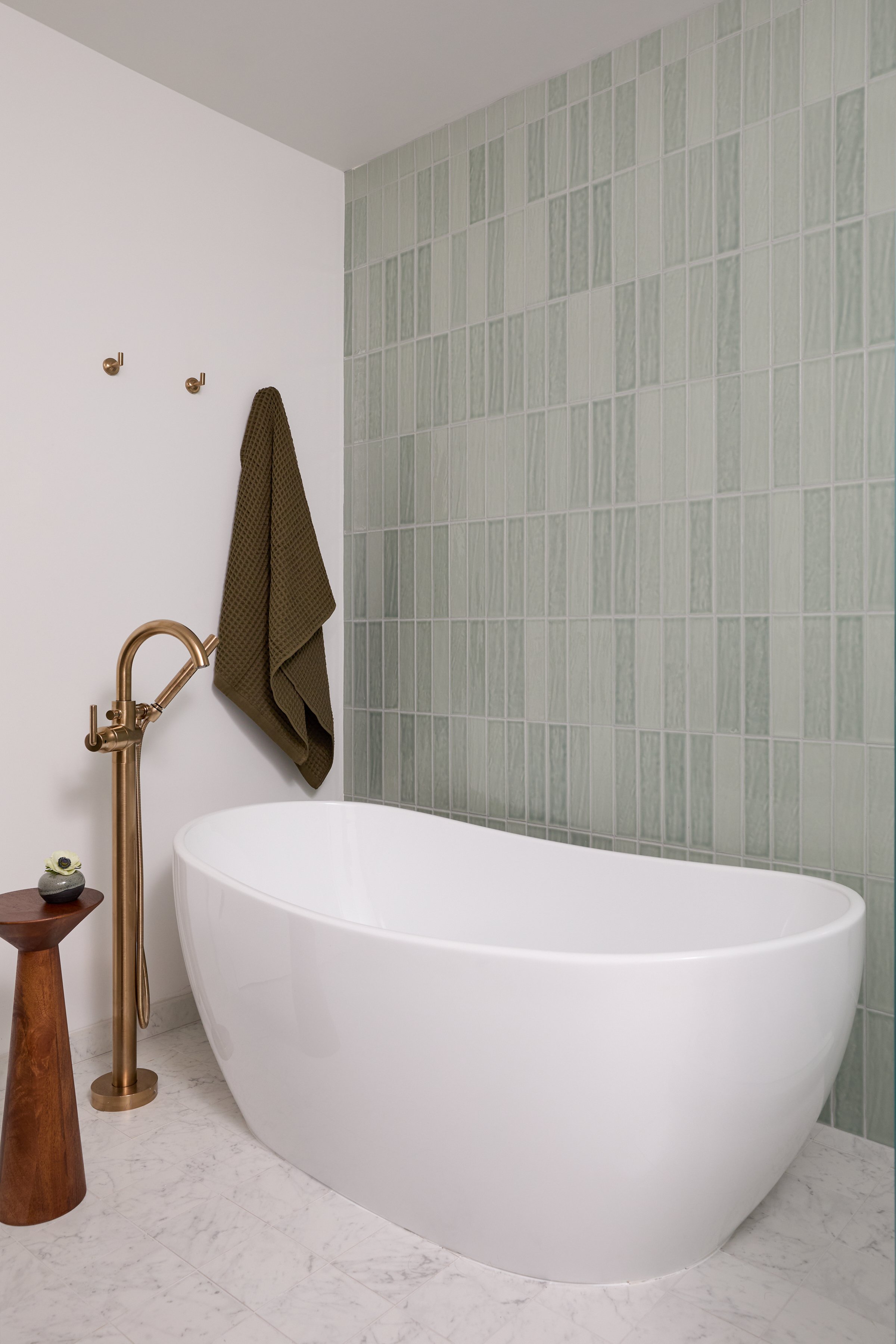

| Primary Bath - Shower & Soaking Tub View |
Dry laying our freestanding tub & tub filler.
All insulation are not created equal. At the exterior walls & attic we are using pink fiberglass & between interior walls, we are using Rockwool (mineral wool) which has superior sound absorption.
The floors for existing houses are rarely level & ours is no different. At our Primary Bathroom, a self leveling floor compound has been poured to make sure all things are level - prior to tiling.
At the shower, you see a red coating which is a waterproofing membrane.
Our Primary Bathroom is starting to take shape — floor tile is in & the shower walls are getting their vertical stack on…

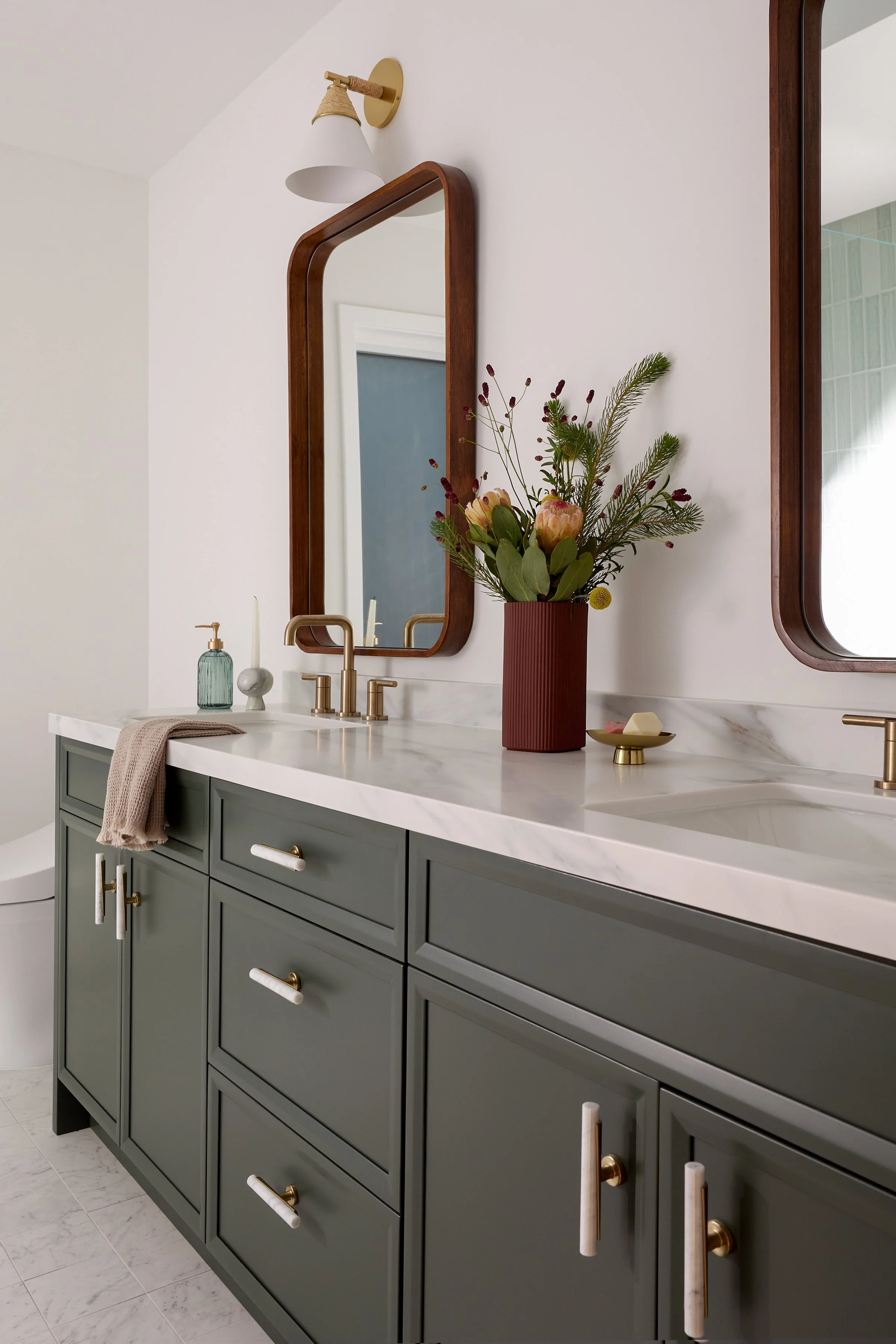

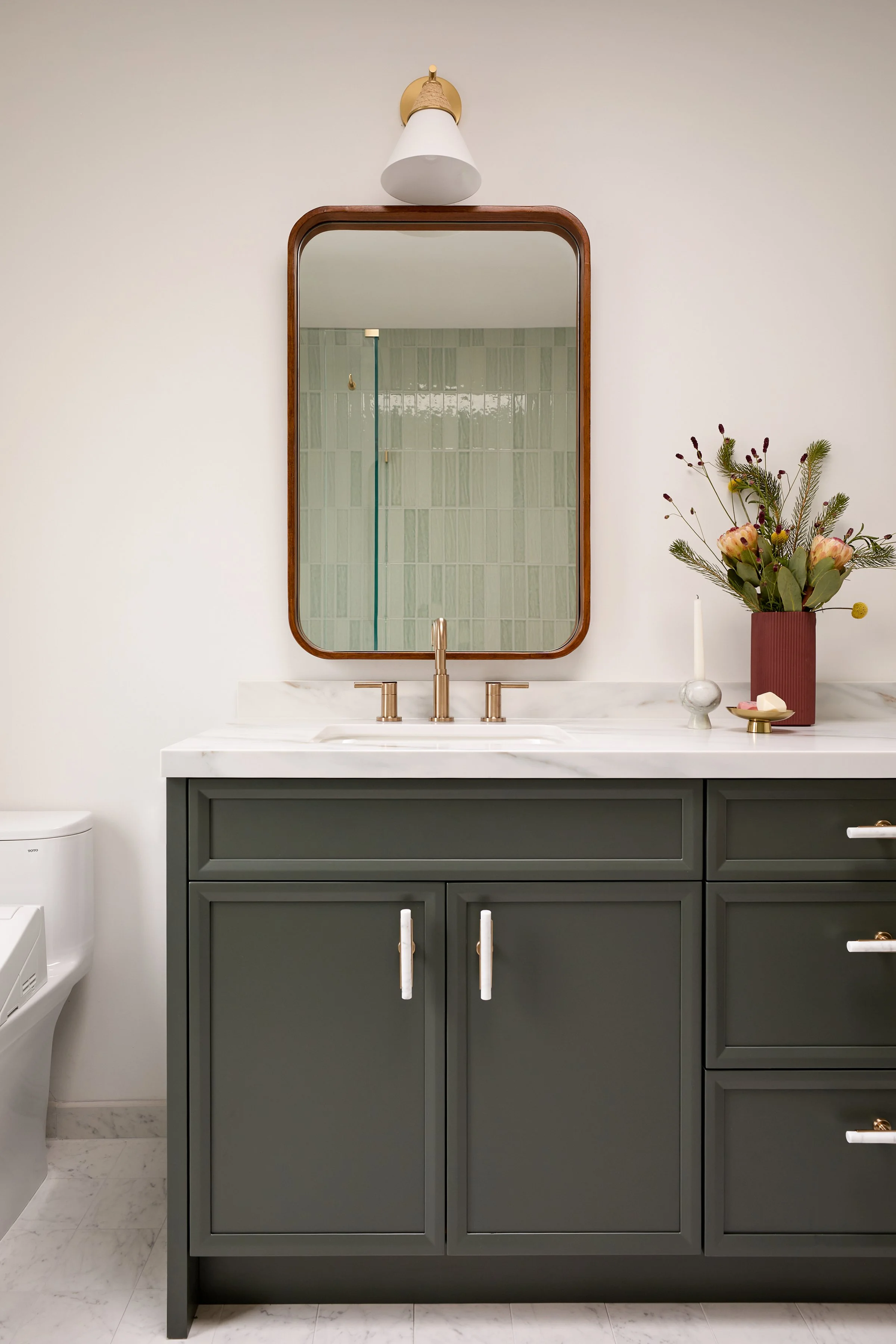

👋🏻 Hello beautiful forest green double vanity!
Waiting for counters (and bathers)…
☑️ Counters, Plumbing Fixtures, & Mirrors
⏳IN PROGRESS: Shower Glass
That very moment of exhilaration - when everything comes together as designed…
Exciting to see the exteriors walls of our attached 435 square foot Studio ADU 🆙
The interior of our attached Studio ADU is progressing well with the roof & bathroom framed.
The overhead orange pipe is for our required sprinkler system.
Our Studio ADU is coming into focus - now that the drywall is up.
ADU interior update - with touches of teal sprinkled throughout for good cheer…
👋🏻 Hello lovely ADU Kitchen dual tone cabinets!
The road to ADU completion goes through tile…
One of the most valuable services we provide is our construction support. Here, we provided the contractor sketches on how to install our selected tile to ensure that we have symmetry where needed and to make certain we don’t have any unsightly small slivers of tile any where.
Another moment of exhilaration - when everything comes together as designed in our ADU.
Site mockup of our stacked basketweave pattern for our ADU Bathroom.

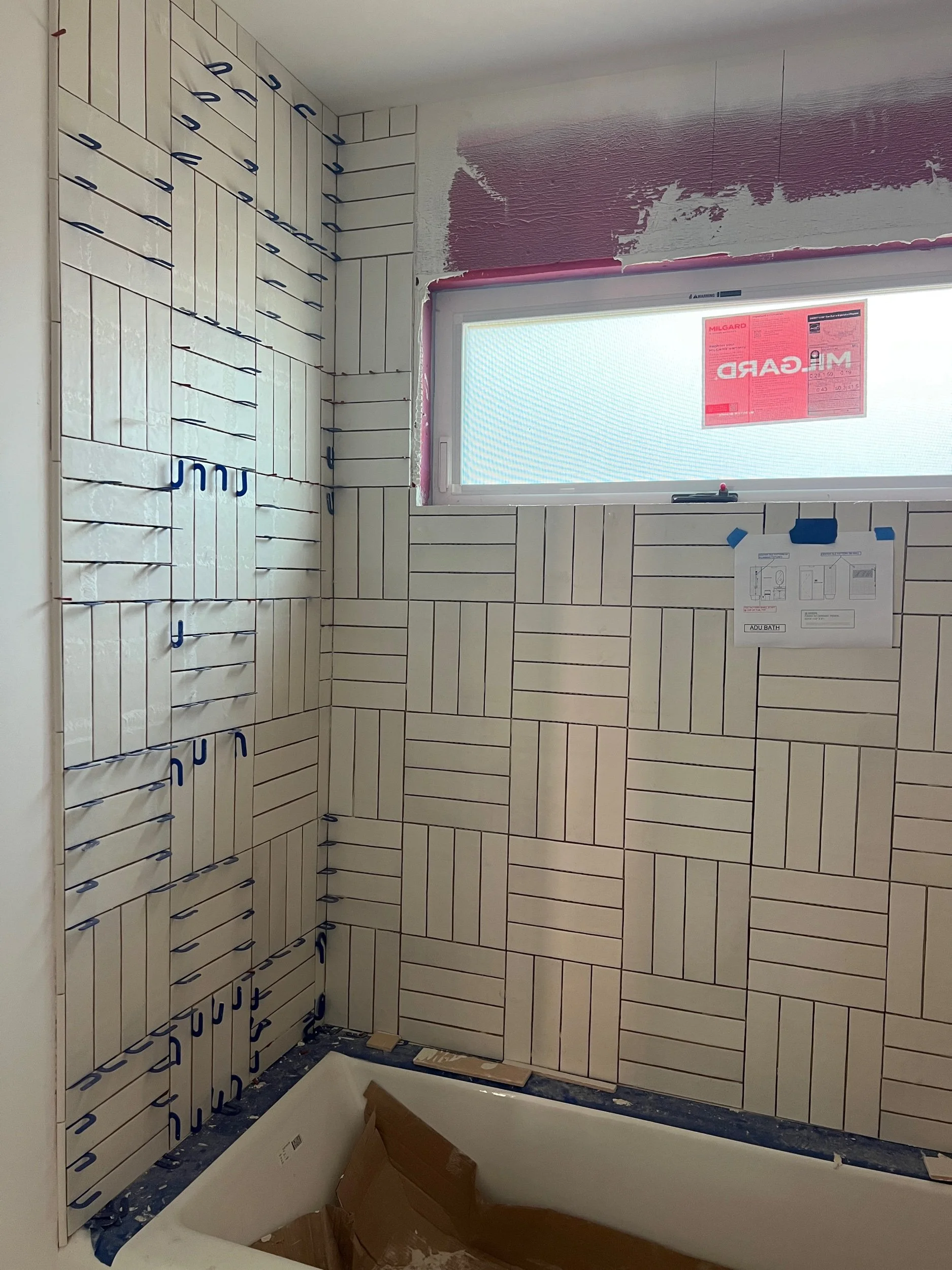

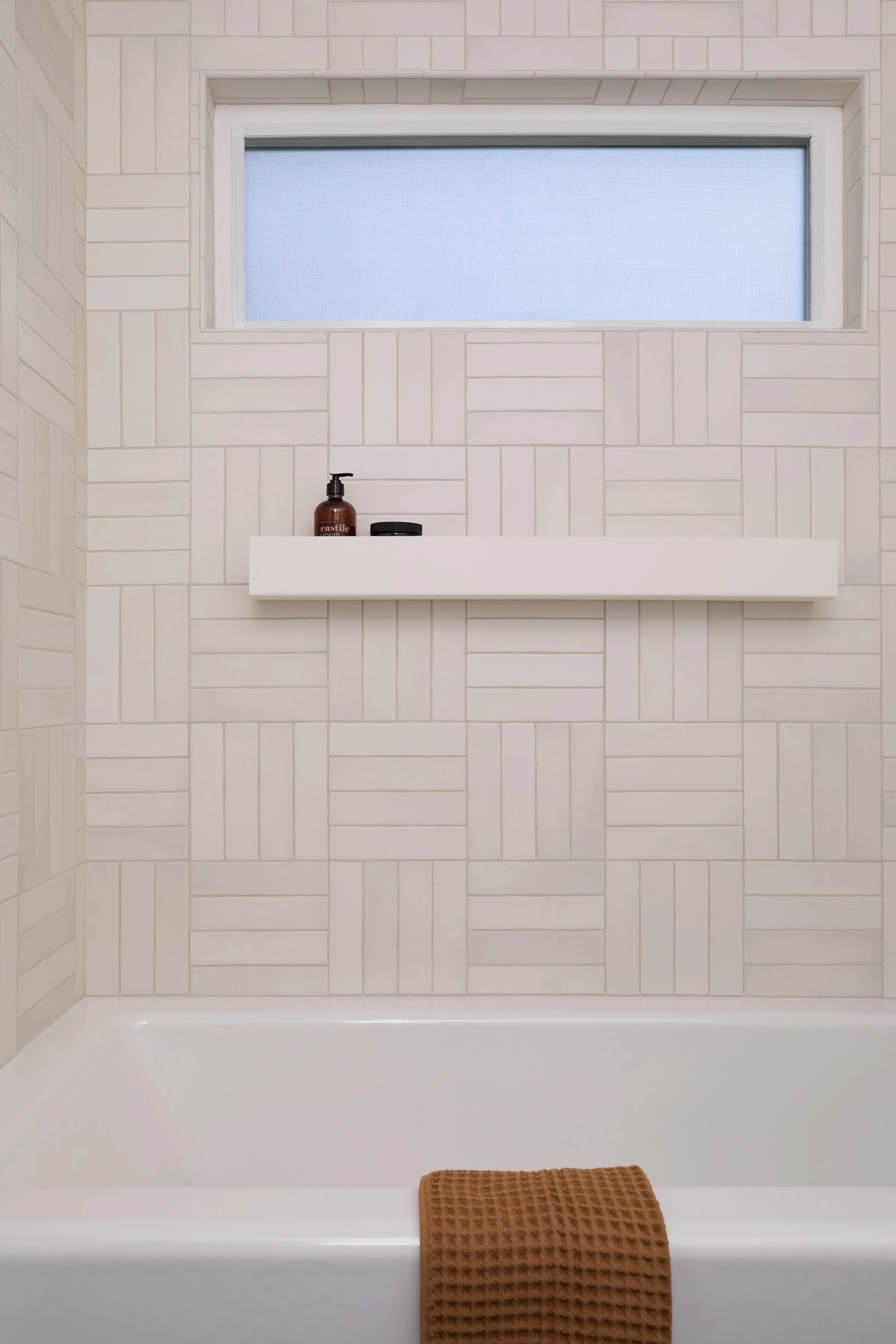

Seeing our ADU Bathroom come to life with our stacked basketweave tile pattern play.
Say 👋🏻 hello to our gorgeous grain match walnut vanity and feast on the textures & colors to delight the senses.
